VisionR/S - Refining Sphere
SPHERE MEASUREMENT

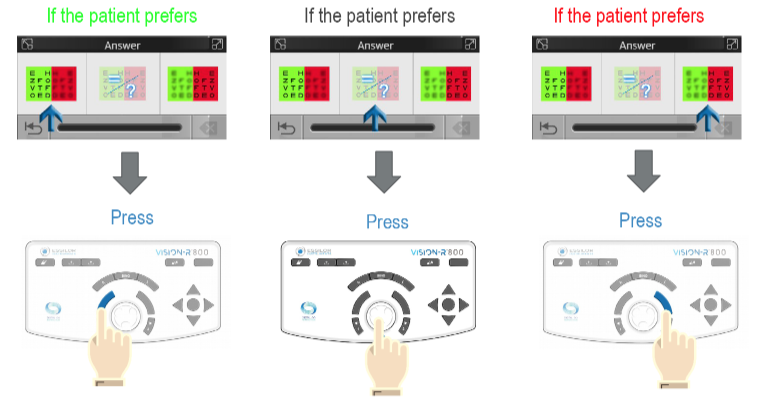

This test is to refine the sphere. It can be performed either 1. Select the red/green test 2. Click Start to begin the test " Are the numbers more clearly visible on red or on the green, or are they about the same on both sides? " |
Continue the exam until the progress is full and the prompt “Next” appears at the bottom of the screen. |
