VisionR 800 - AVA - Settings Configuration
Is recommended to upgrade VisionR-800 to software version 2.6 or latest
EMR/EHR Vendor Portal
To obtain XML samples, click on the below.
EMR/EHR Vendors ready for AVA :
Manual Entry Exportation Settings

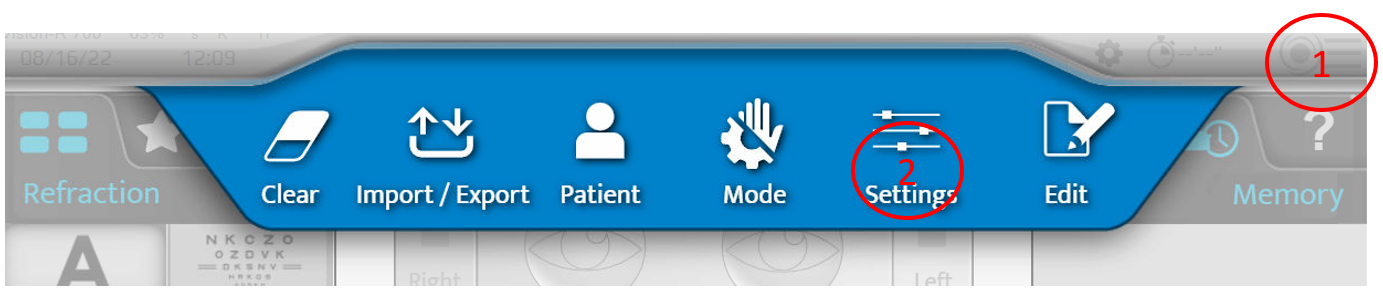

1. Go to settings

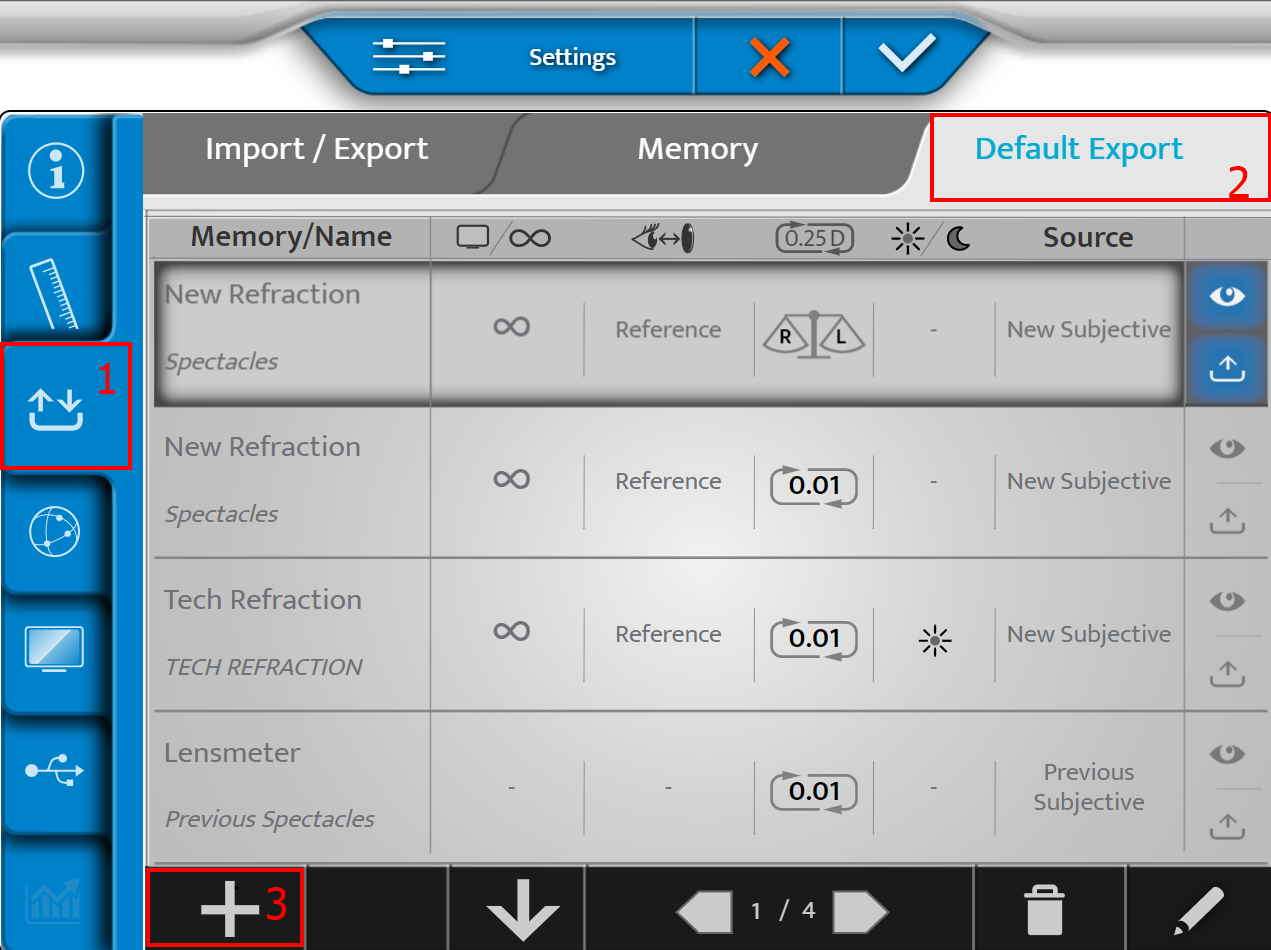

2. Go to Import/Export and Default Export tab, then click on (+)

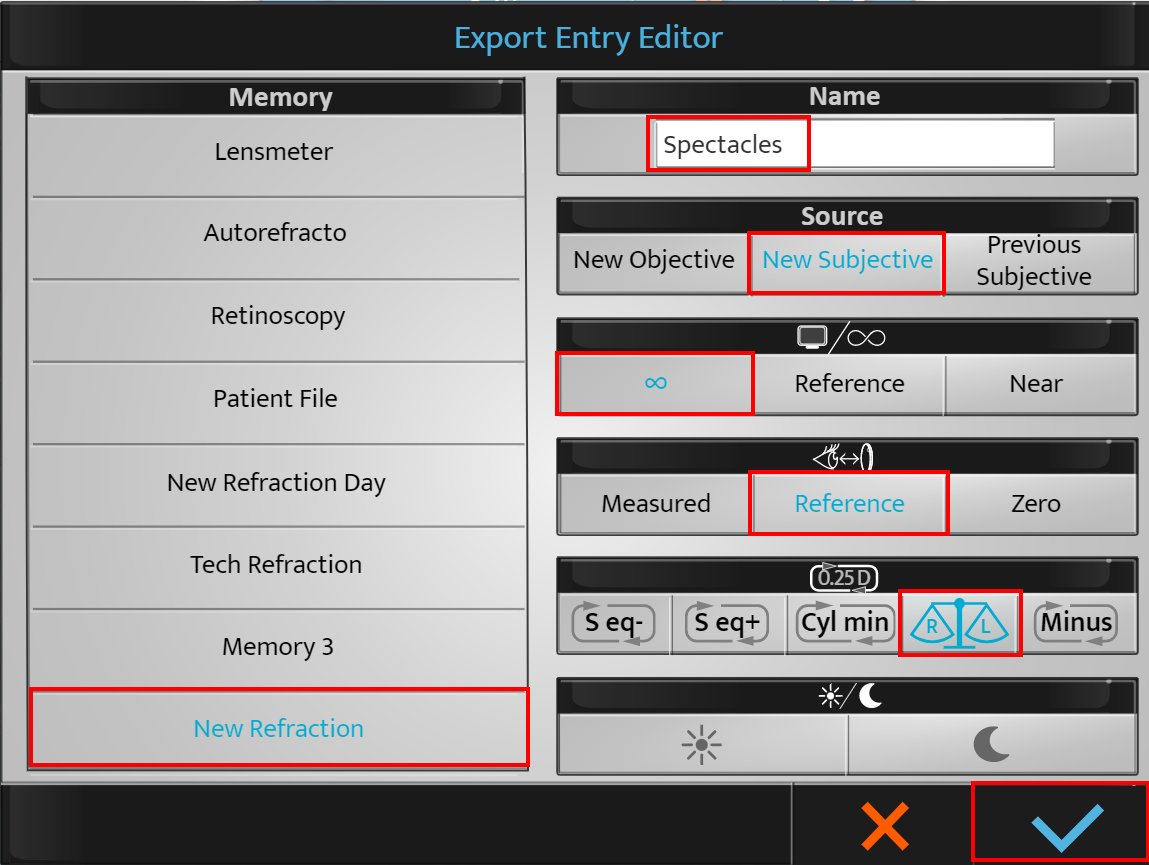

3. Export Entry Editor is displayed. Proceed to create exporting configuration as the image below.
> Select "New Refraction"> Name " Spectacles"> Source " New Subjective"> Chart/Infinity "∞"> VD "Reference"> Rounding "R/L" or Customer Choice> Nothing for Day or Night.

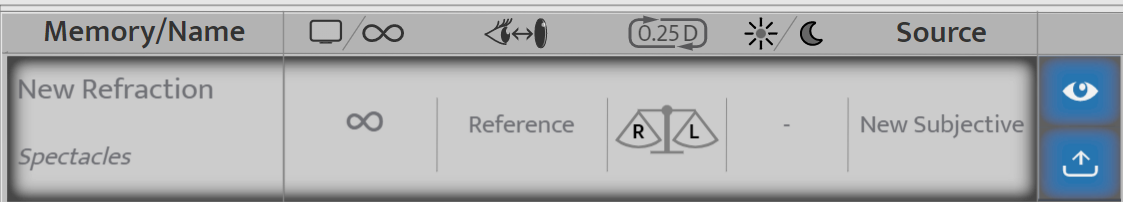

4. Make sure the exporting line is identical as below.
Chart screens configurations compatible with VisionR800
