Setting up VisionR700/VisionR800 to read QR code ticket

Setting up VisionR700/VisionR800 to read QR code ticket


Requirements:
VisionS700  SW V 2.6.0.8 or latest
VisionR700/800 SW V 2.6.0.8 or latest

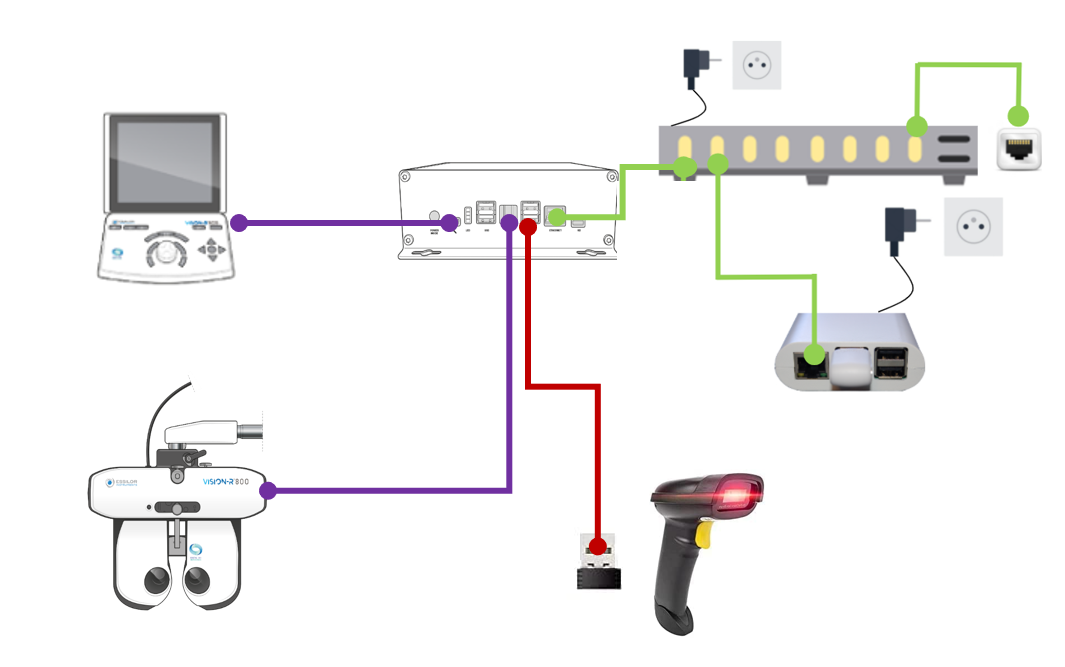

Cable Connections


Settings Configurations

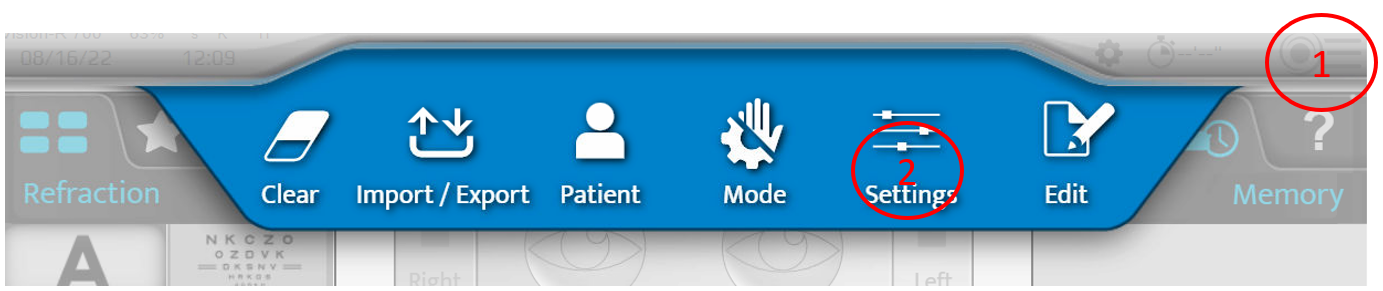

1. Go to settings

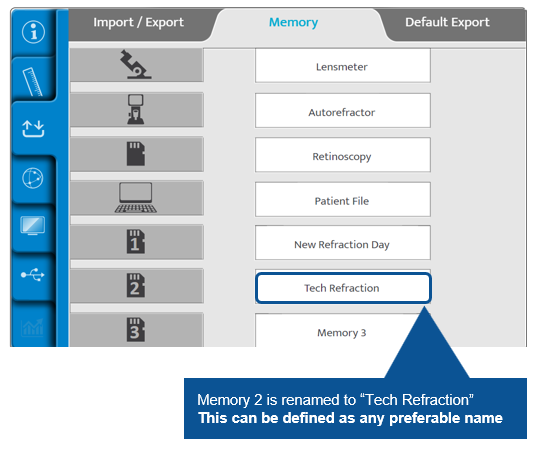

2. Go to Memory and rename of them to "Tech Refraction" or other.

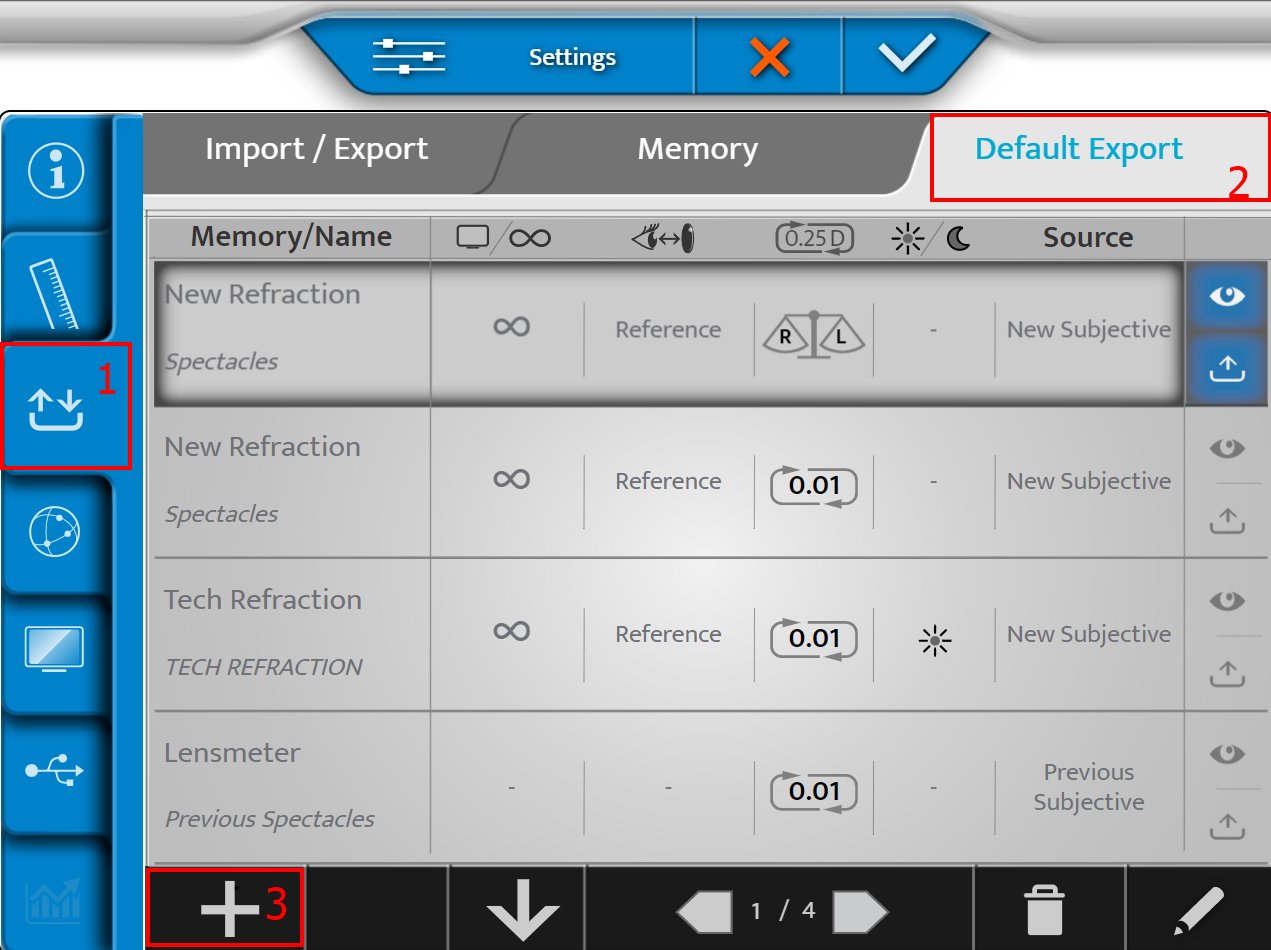

3. Go to Import/Export and Default Export tab, then click on (+)


3. Export Entry Editor is displayed. Proceed to create exporting configuration  as the image below.
> Select "Tech Refraction"
> Name " Tech Refraction"
> Source " New Subjective"
> Chart/Infinity "∞"
> VD "Reference"
> Rounding to nothing. Leave "Blank"
> Day or Night. Preferable "Day"

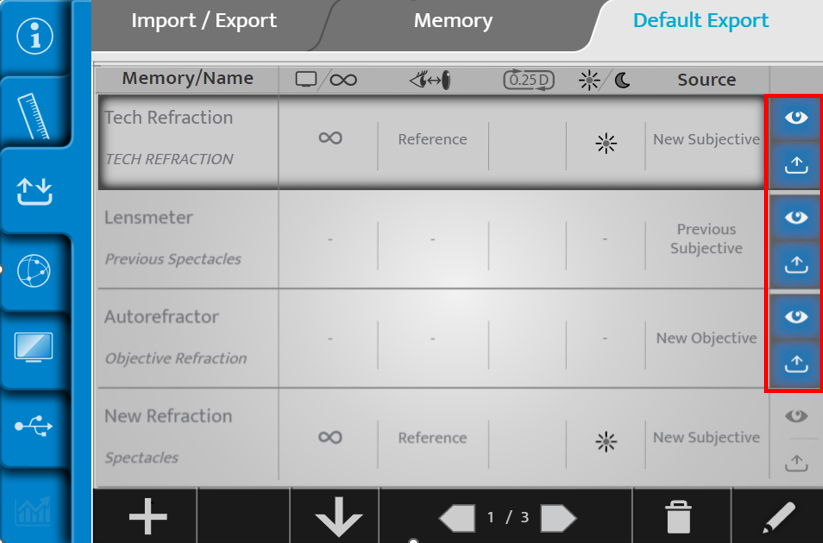

4. Check or highlight the sections as is indicated below.
