CSPOLA600 - Installation

CSPOLA600 - Installation

Available configurations for CSPOLA600

  1. CSPOLA600 - Configuration with VisionR800 and VisionR700
  2. CSPOLA600 - Configuration with APH550
  3. CSPOLA600 - Configuration


Different types of wall

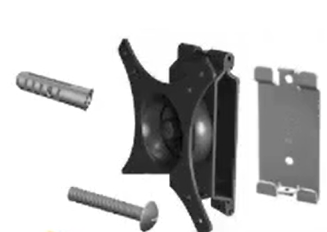

Wall mount

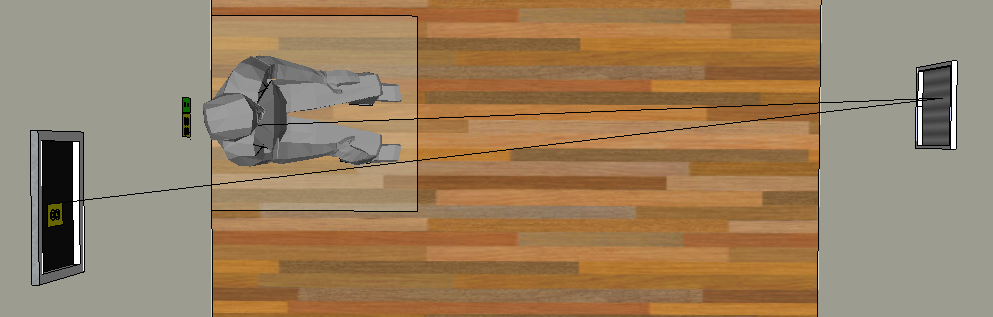

6 to 11 feet apart

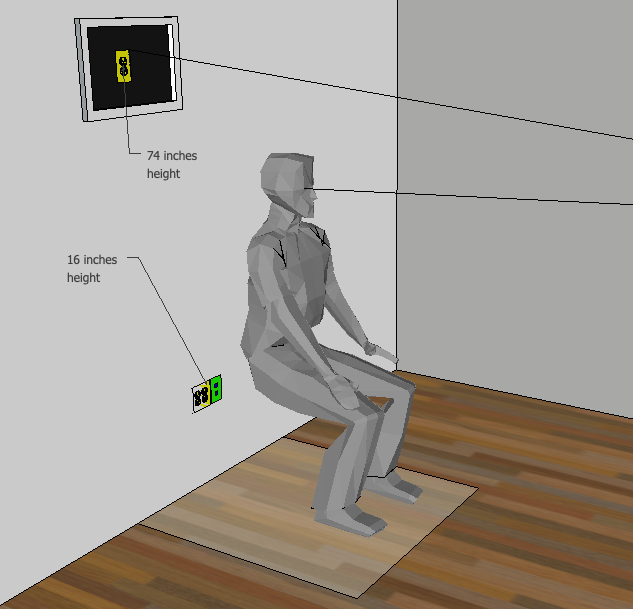

  1. 1 power source behind the patient at a height of 74 inches.
  2. 1 mirror in front of the patient at a height of 64 inches.
  3. 2 internet ports behind the patient.

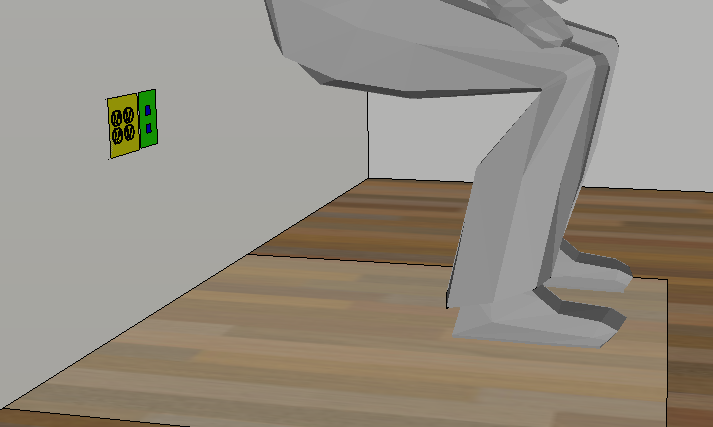

  4. 1 power source behind the patient.

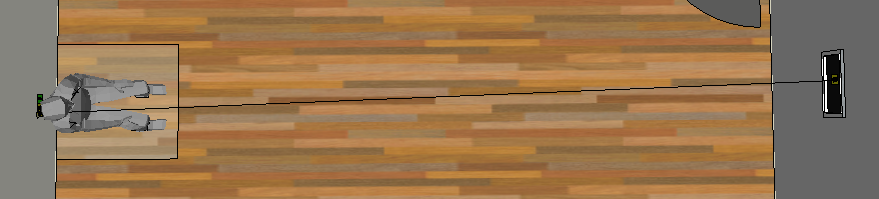

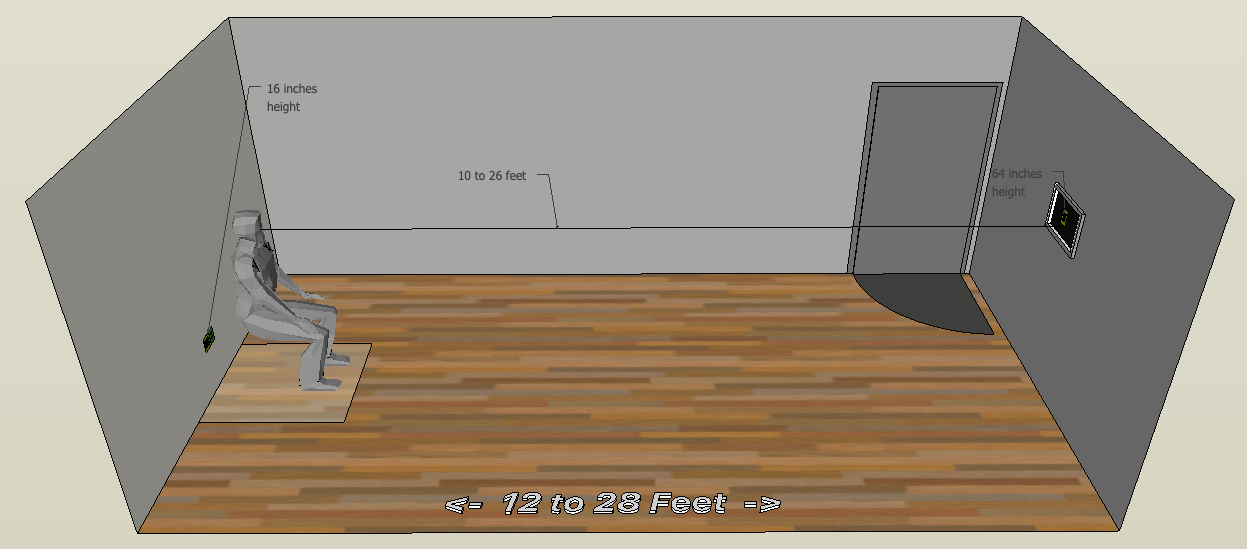

10 to 26 feet apart

  1. 1 power source behind the patient at a height of 16 inches.
  2. 1 power source in front of the patient at a height of 64 inches.
  3. 2 internet ports behind the patient.
