CSPOLA600 - Configuration with APH550

CSPOLA600 - Configuration with APH550

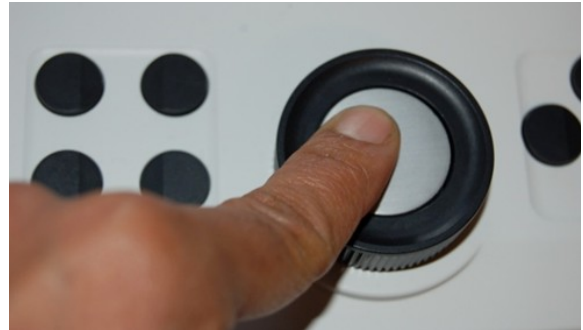

1. Hold the central button down while pressing the “ON/OFF” button.  The monitor comes on.



2. When you hear the beep, remove your finger.
The following screen will appears.

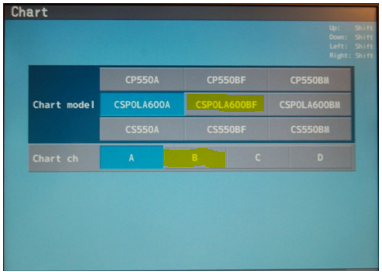

3. Go to the tab “Chart”.



4. “BF” corresponds to acuity notation in feet

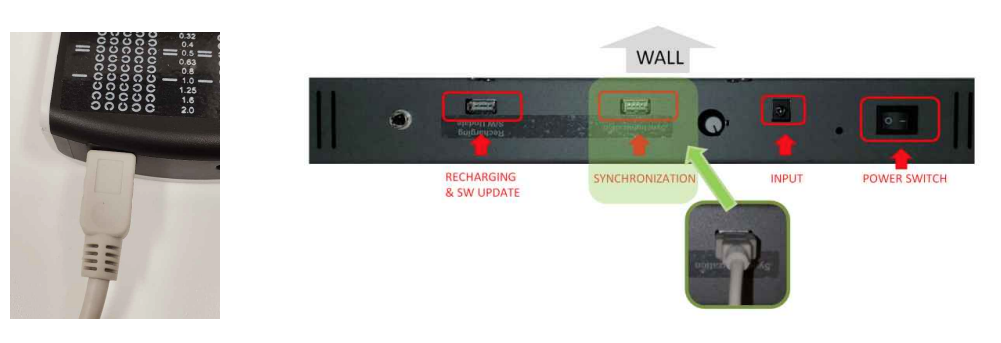

5. Connect the remote control to the CSPOLA600 display unit.
Use the USB cable to recharge the remote

6. Align the remote control with the CSPOLA600 screen.



7. On the remote, press and hold the SETUP button.

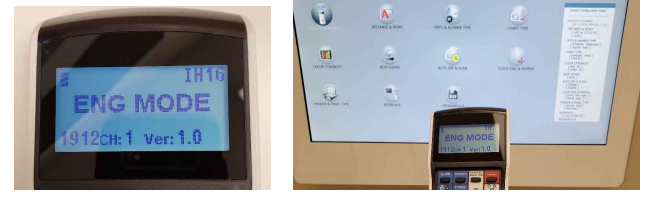

ENG MODE screen if followed on the remote and CONFIGURATION on the CSPOLA600


*REMOTE CHANNEL
[IR:2 CH & APH550:2 CH]
DISTANCE & POINT
[4.00 m (13.12 ft)] The value may vary depending on the installation requirements.
[Circle]
OPTO & NUMBER TYPE
[Hiragana (Japanese)]
[Square type]
CHART TYPE
[ Eyesight: None]
[TYPE B]
COLOR STRENGTH
[Red 19]
[Green 19]
BEEP SOUND
[60%]
AUTO OFF & SLIDE
Disable
CLOCK DIAL & PHORIA
[Clock dial type 1]
[Phoria type 1]
MIRROR & PANEL TYPE
[Normal type] The value may vary depending on the installation requirements..
[Polarized ]
INTERFACE
[Link 2(Chart BF)]
PROGRAM A-B
