CSPOLA600 - Changing BIOS

Make sure you have a USB or wireless keyboard

1. Use the       power switch to turn off the unit.

2. Prepare a keyboard or wireless keyboard and connect it to the USB port [Recharging S/W Update]

3. Press and hold the   key on the keyboard, then turn on the  power switch.	+
4.  Release the    key when the BIOS screen appears

5. Use the   on the external keyboard and go to Advanced.

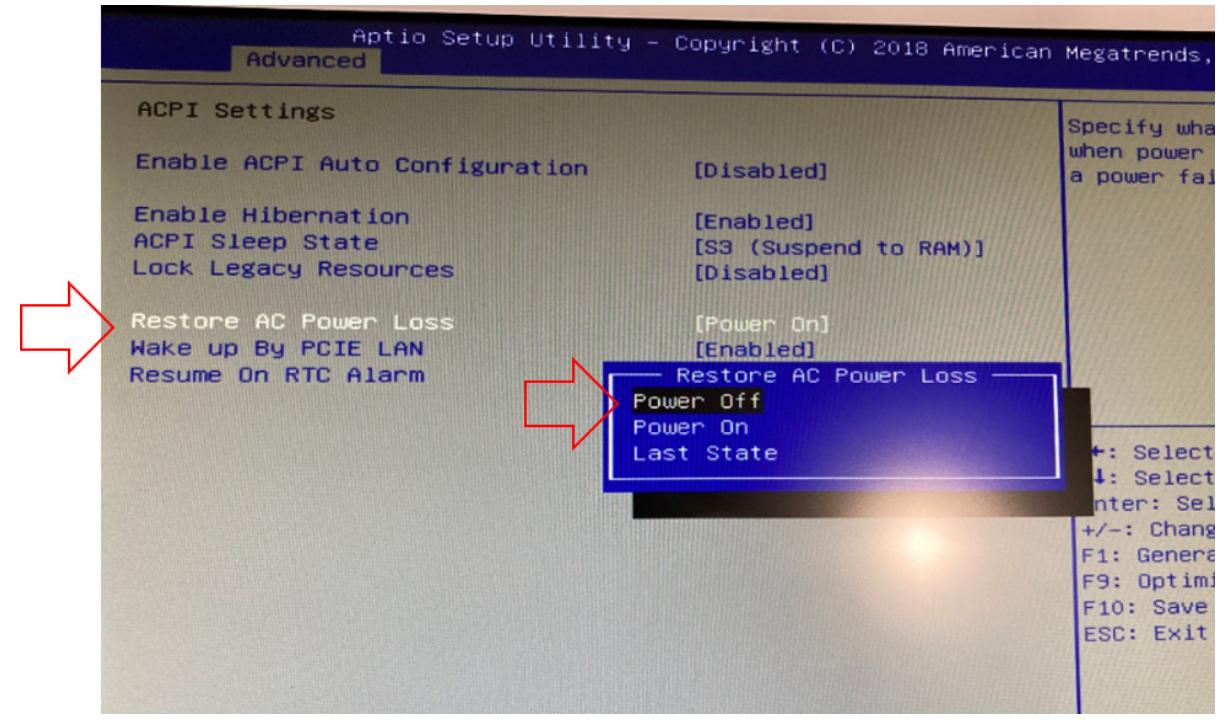

6. Press    key and Select [Restore AC power Loss] and press  key , then use the  and navigate to Power off.

Press     key to Exit.

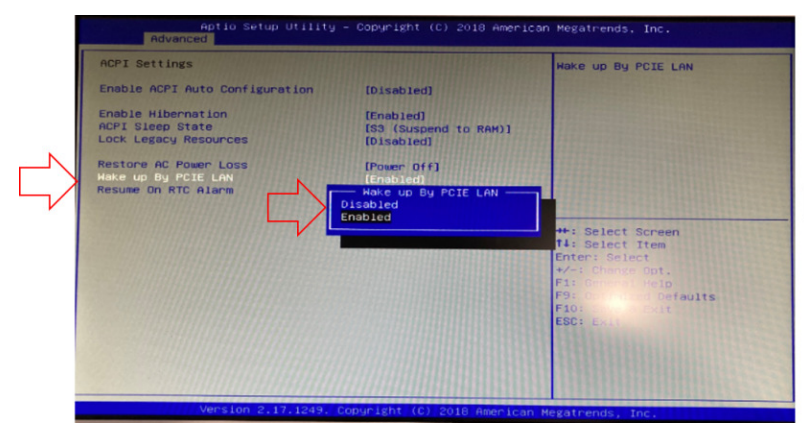

7.    Press    key and Select [Wake up by PCIE LAN] and press     key , then use      key and navigate to [Disabled].

Then press    key to exit.

Check Point - You should see this configuration at this point of the procedure.

Restore AC Power Loss      [Power off]

Wake up By PCIE LAN       [Disabled]

8. Press the  key to Save & Exit the configuration.

9. When the message " Save Configuration and Reset? " appears press     key.

10. Procedure is complete.
