CS550 - Is not booting up

The screen is not supposed to display the boot screen below:

However, it often happens when you power off at boot, or when you power off without using the power button.

It is a normal screen caused by when the operating system is not found at boot. The system requests, "I haven't

found the operating system before. What is the problem?"

It is a screen that asks the user to make a choice. Therefore, it is an extremely normal progression that such a screen is not a big problem.

Action 1

When the time indicated by the dotted red circle on the screen ends (10 seconds or 30 seconds), the chart

system should be operated automatically.

Action 2

If it occurs continuously each time, there may be a problem with the memory (M-SATA SSD: mini SATA Solid

State Drive) or the motherboard.

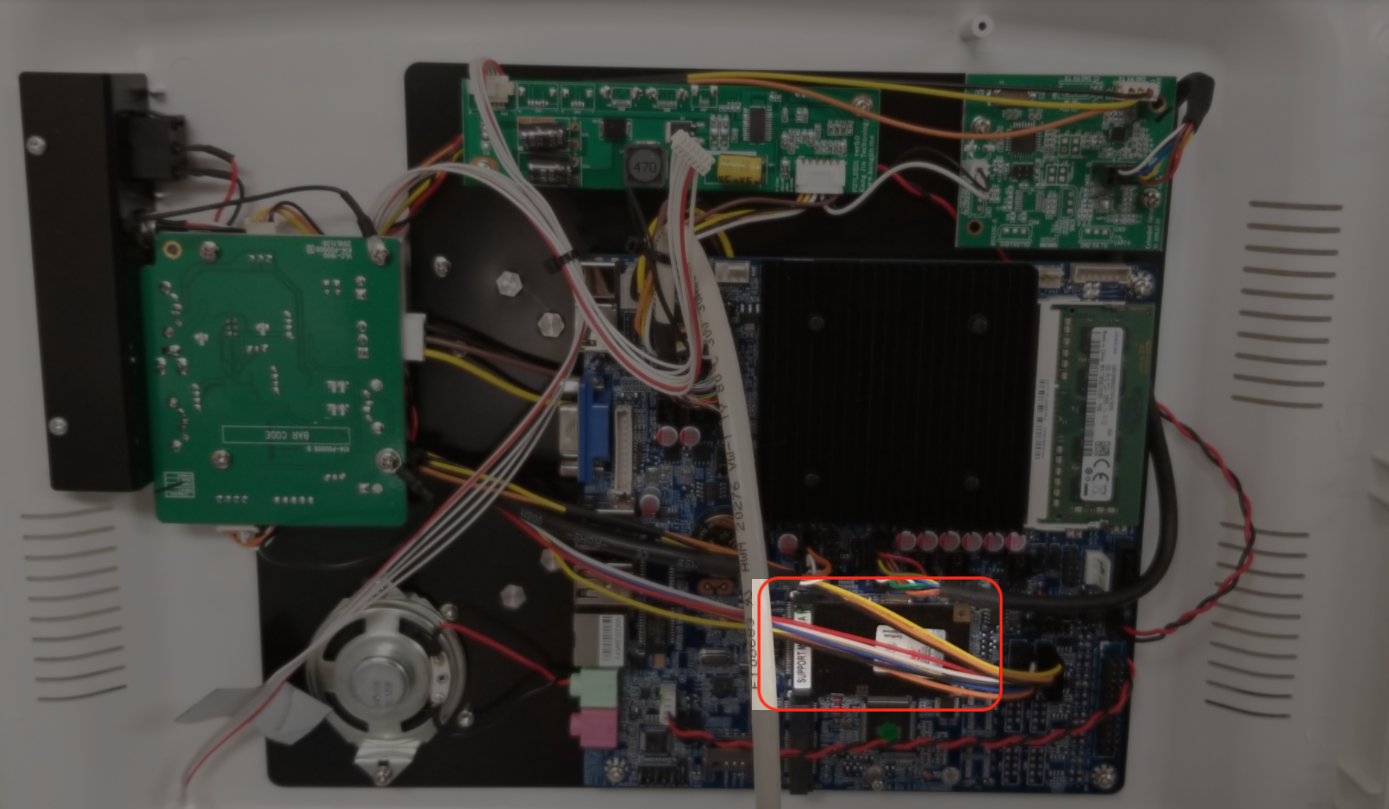

First, replace M-SATA with the power cord disconnected from the chart system.

The part that must be replaced   _  PN CS578
