VISIONC600 - Configuration via network

VISIONC600 - Configuration via network

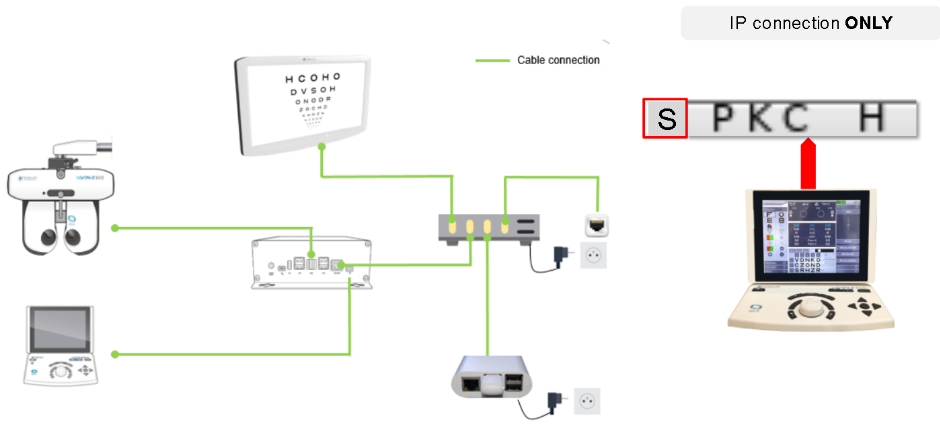

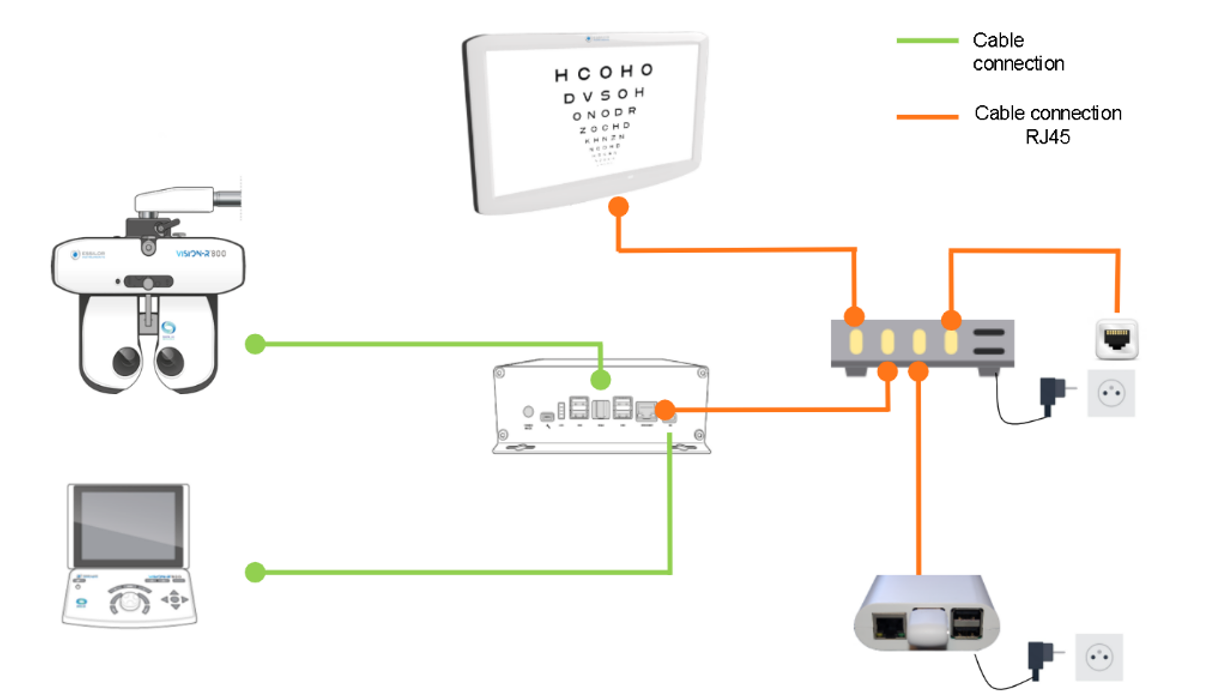

Cables Connection



It is mandatory to update the screen to allow the communication between Vision-R800/700 and Vision-C 600.

Settings Configuration & Calibration

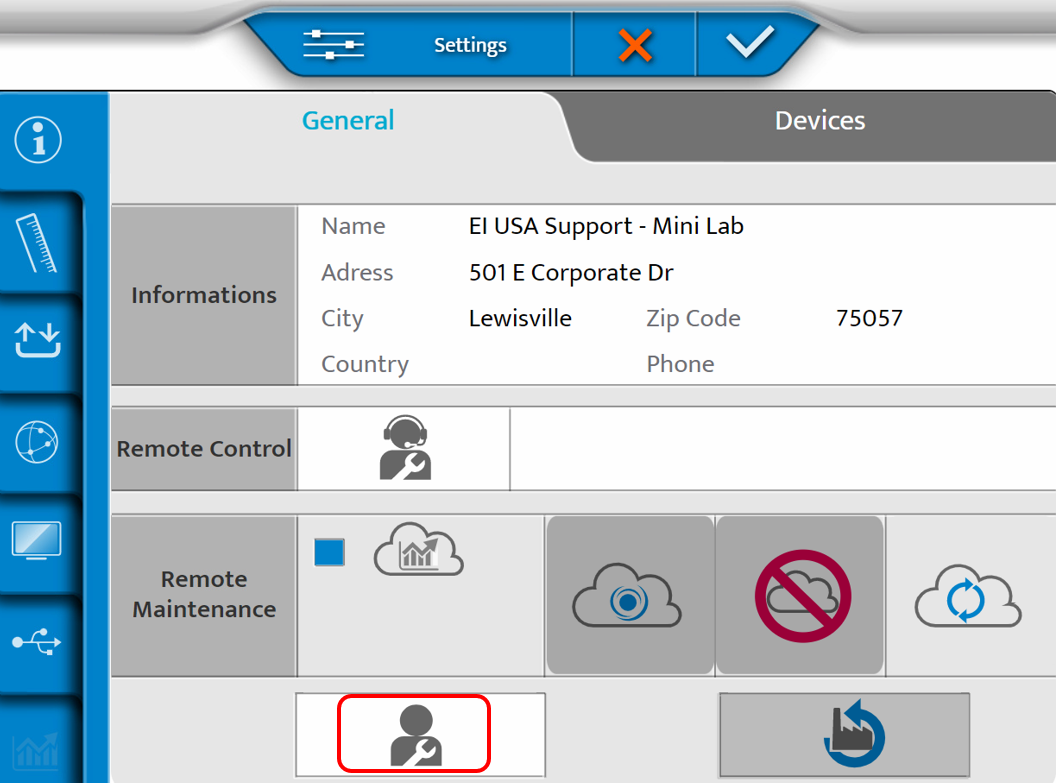

1. Go to settings



2. Insert your tech code.

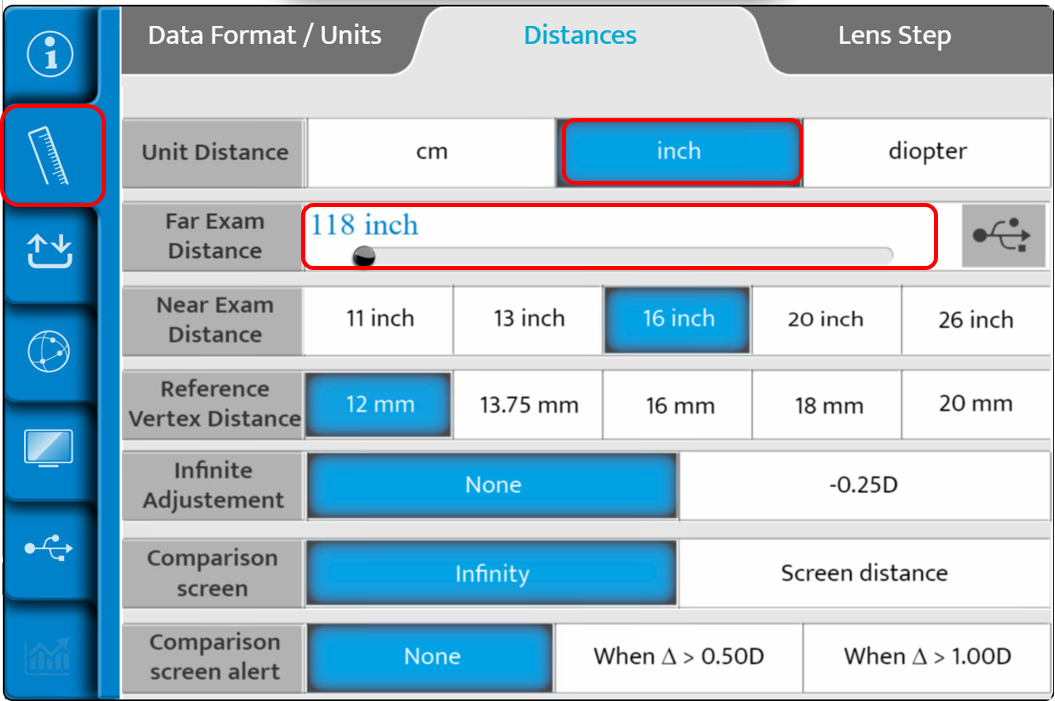

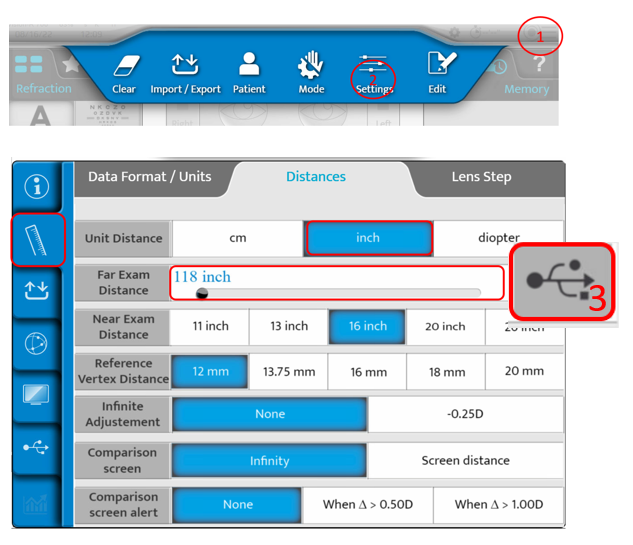

3. Navigate to Ruler and select distances
Set the desired total length in inches of the exam room.



Screen and select Chart Display
Set to 20Ft, Snellen and Snellen. Acuity Display is optional.

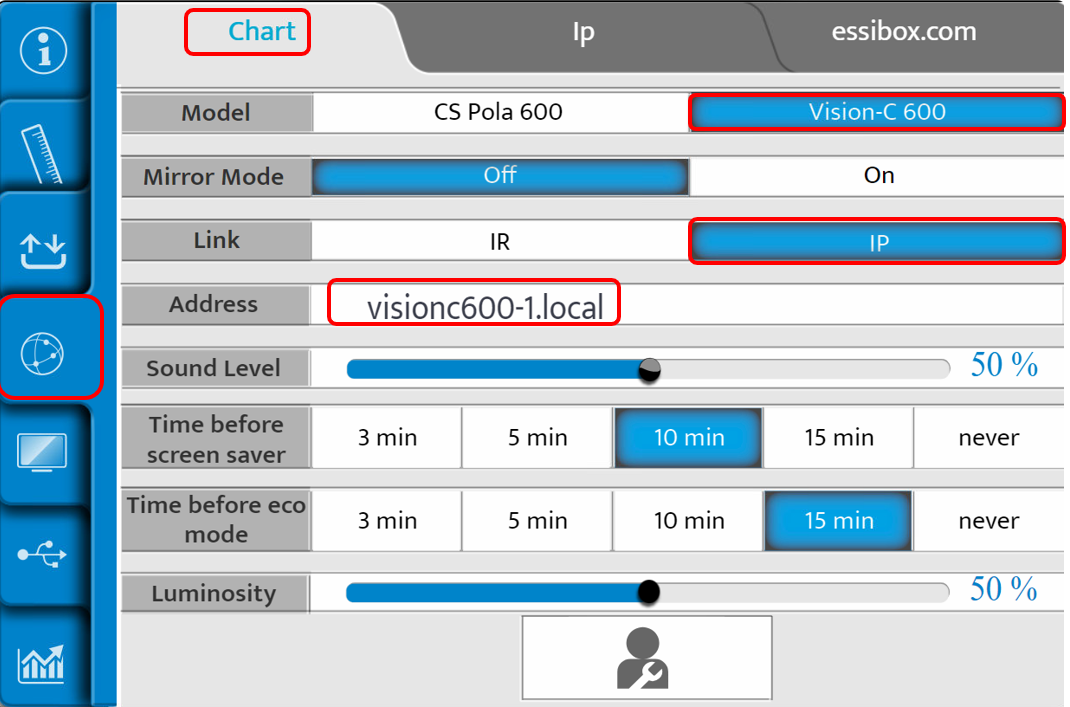

4.  Navigate to Network and select Chart.

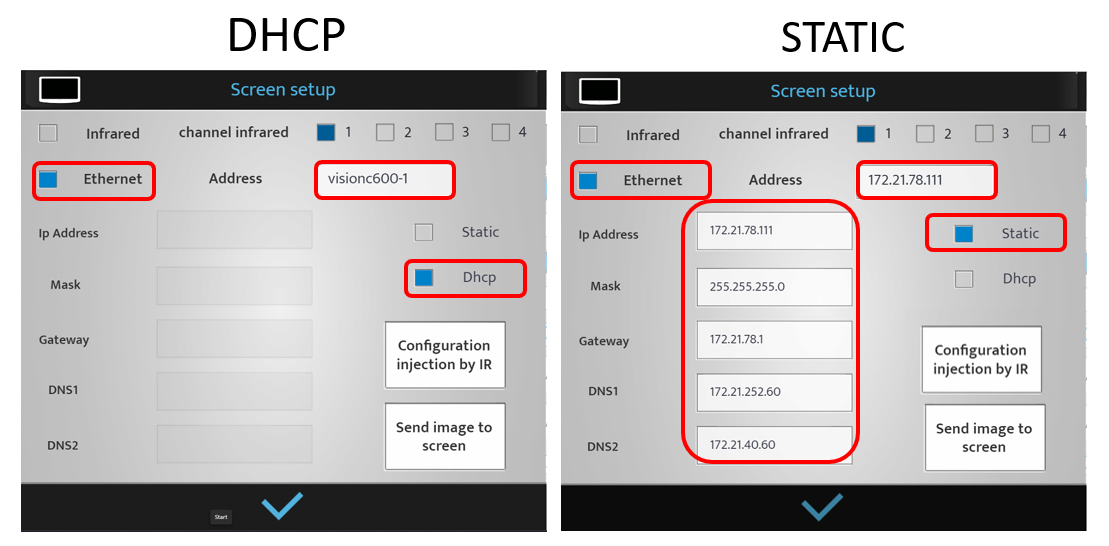

Set the parameters as it shows the image below.

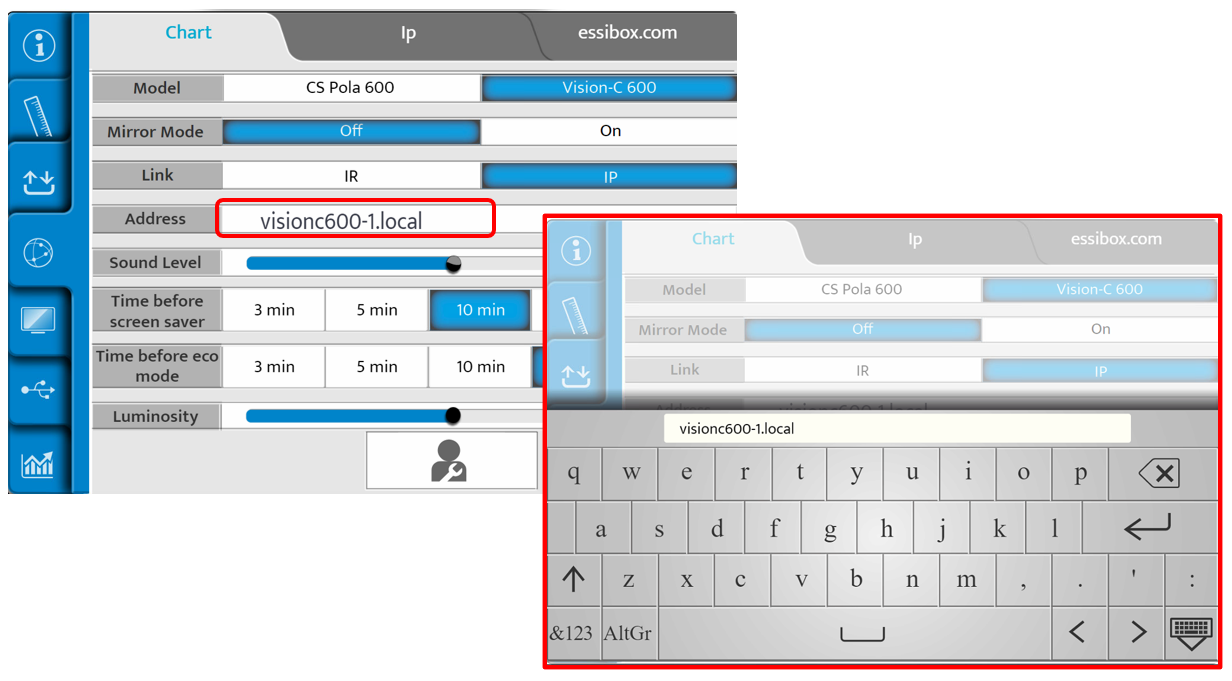

On Address filed we recommend the following:
  1. Use IP of the screen if it has DHCP reservation by the IT administrators.
  2. In order to avoid network conflics. Use name visionc600.local and add a number right after corresponding to the room.

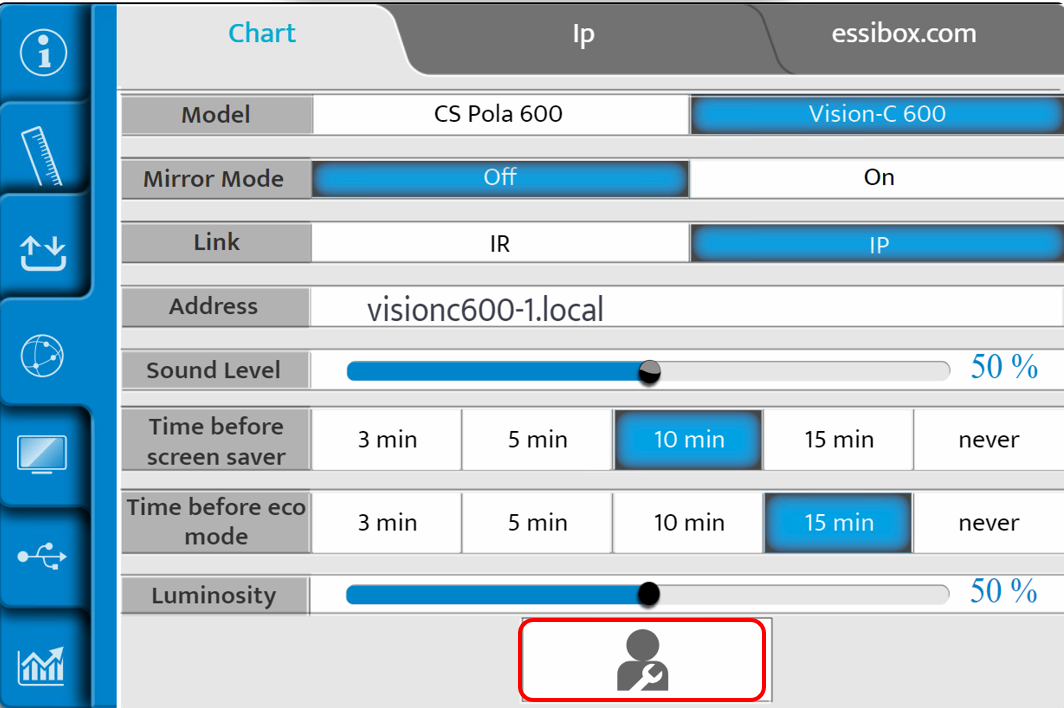

5. Press Tech Button.

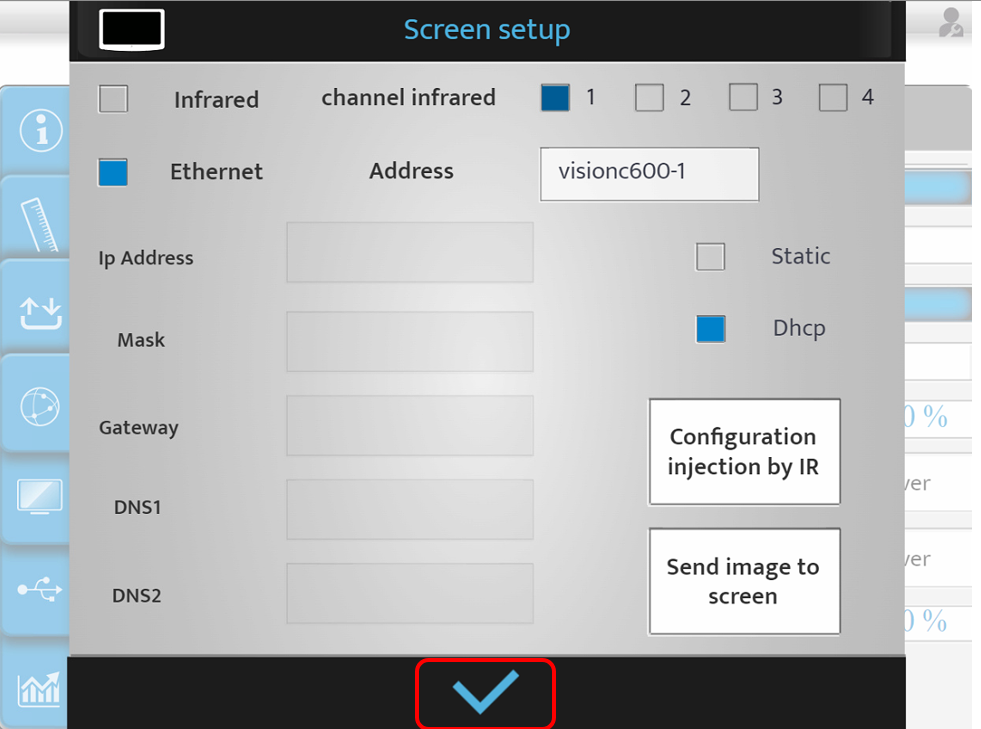

6. Verify the parameters.
DHCP: Works great with hostname.
STATIC:  IP (reserved) must be provided by IT administrator.



7. Press Configuration Injection by IR button.

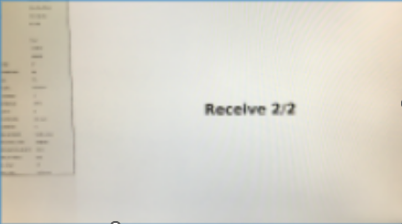

8. The screen will receive the parameters via IR.
Screen will show the name given by the installer.




Testing Controlling Command

9. Press Send image to screen to test.

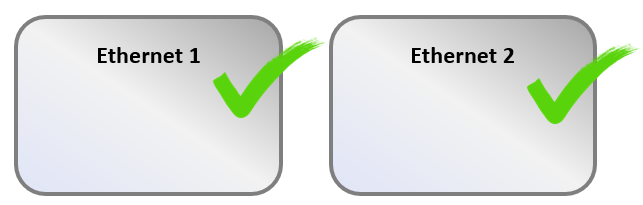

9.1 The screen will show changes (Ethernet1 & Ethernet2).




Calibrating System

1. Press Check to close the Screen Setup page.



2. Press check to save all the parameters.

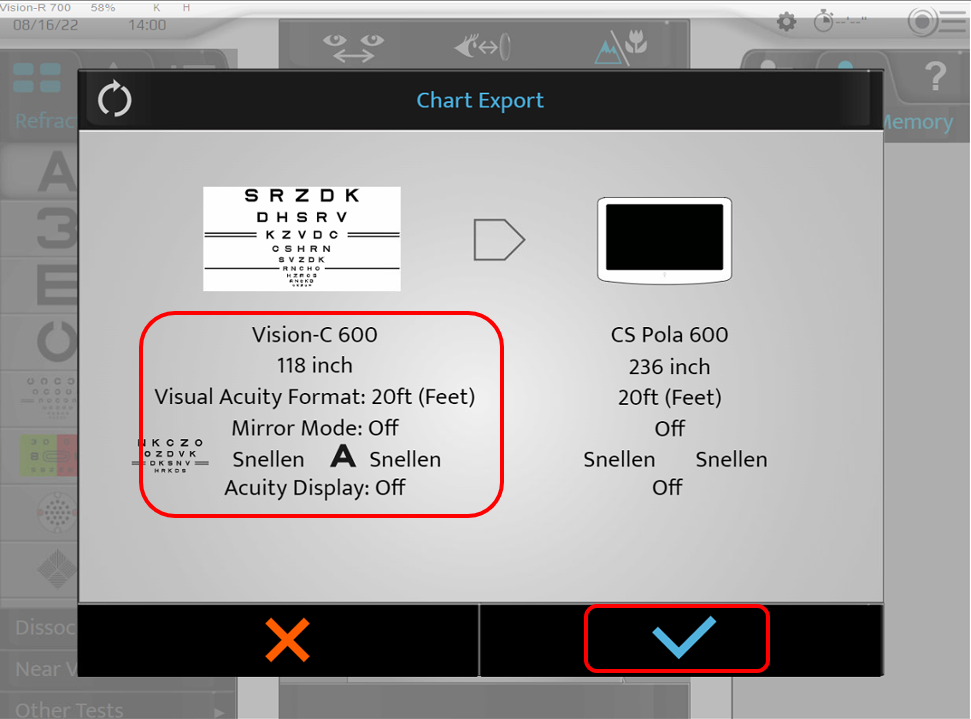

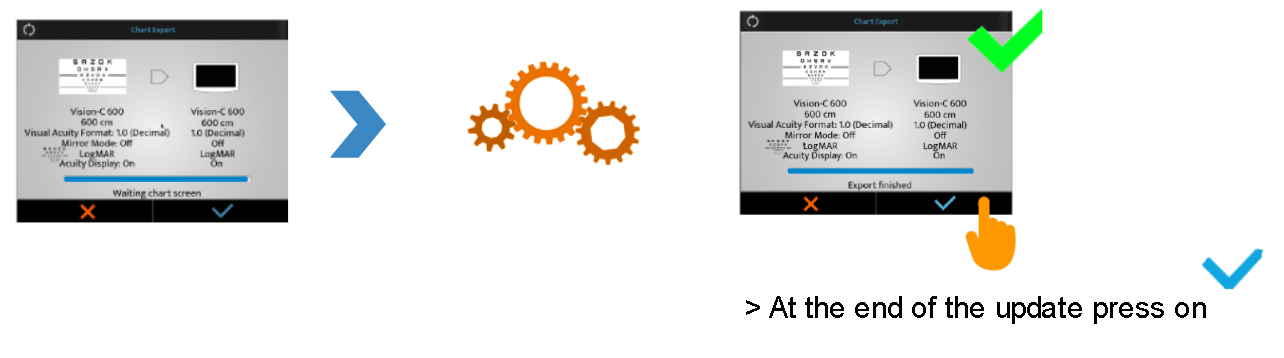

3. Chart Export screen is displayed.
Verify the parameters and press check.


In case the Chart Export Message does not show you can follow these steps.

The calibration parameters will be performed via network.
No need to connect the USB thumb drive.

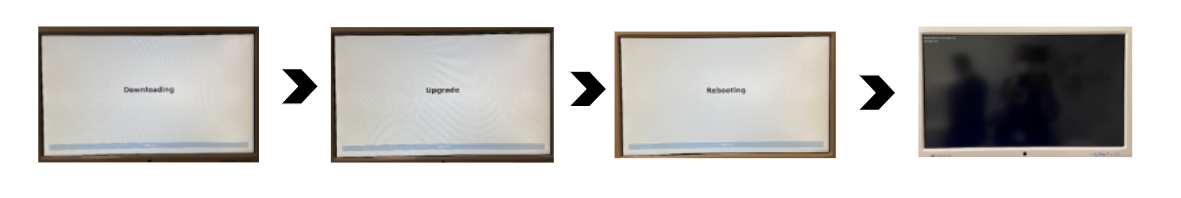

> The system reboots.

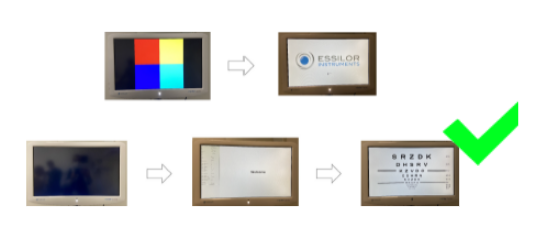

> The system reboots a second time.


 The letter "C" will be displayed on the keyboard.

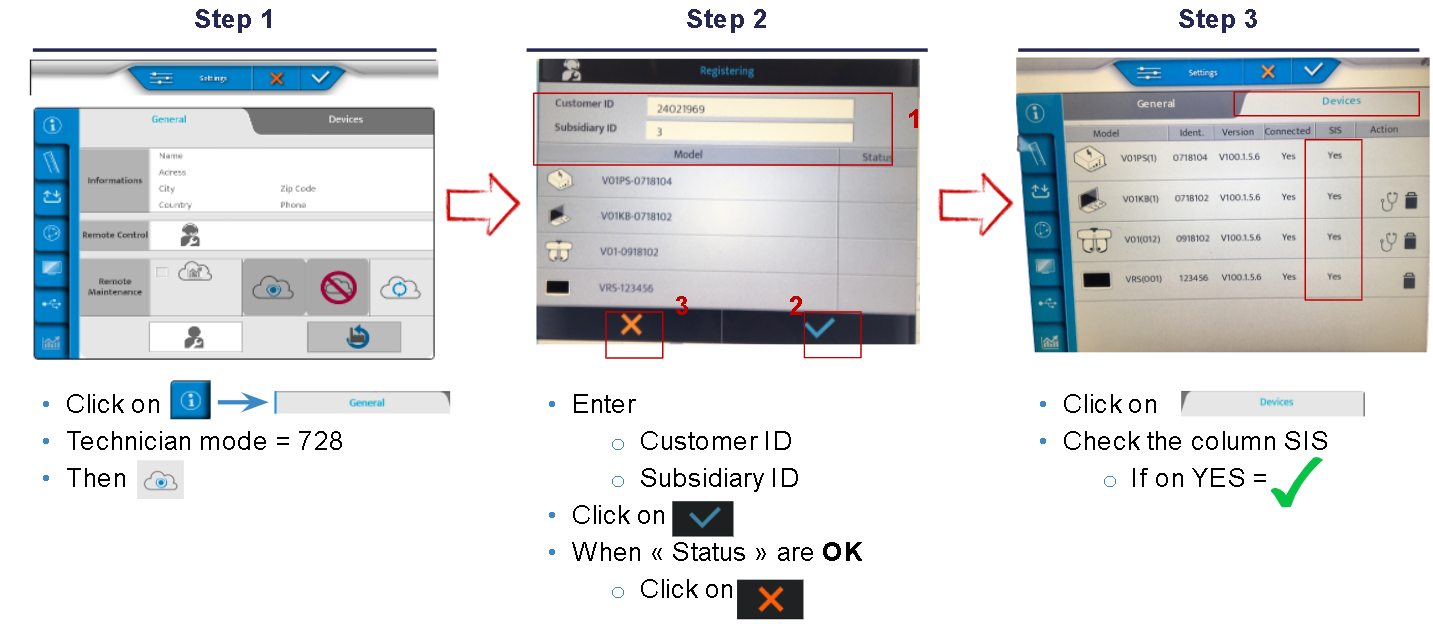

Registration in SIS / Vision-R 800/700 & VC600 registration (IP connection)
