VISIONC600 - Configuration via IR

VISIONC600 - Configuration via IR

Cables Connections


It is mandatory to update the screen to allow the communication between Vision-R800/700 and Vision-C 600.

Settings Configuration & Calibration

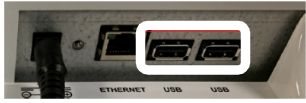

1. Connect the memory unit USB in any of the indicated USB ports. Refer to the image below.


2. Go to settings



3. Insert your tech code.


4. Navigate to:
Ruler and select distances
Set the desired total length in inches of the exam room.



Screen and select Chart Display
Set to 20Ft, Snellen and Snellen. Acuity Display is optional.

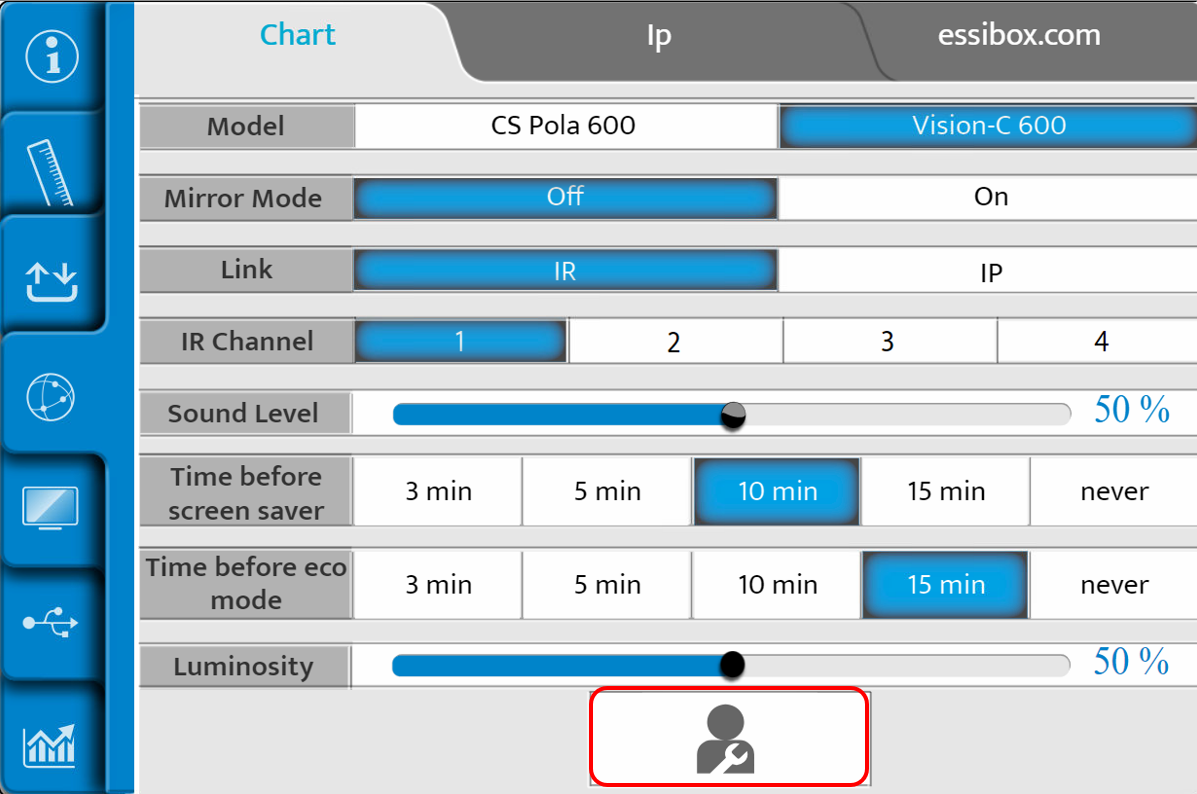

4.1  Navigate to Network and select Chart.
Set the parameters as it shows the image below.


5. Press Tech Button.

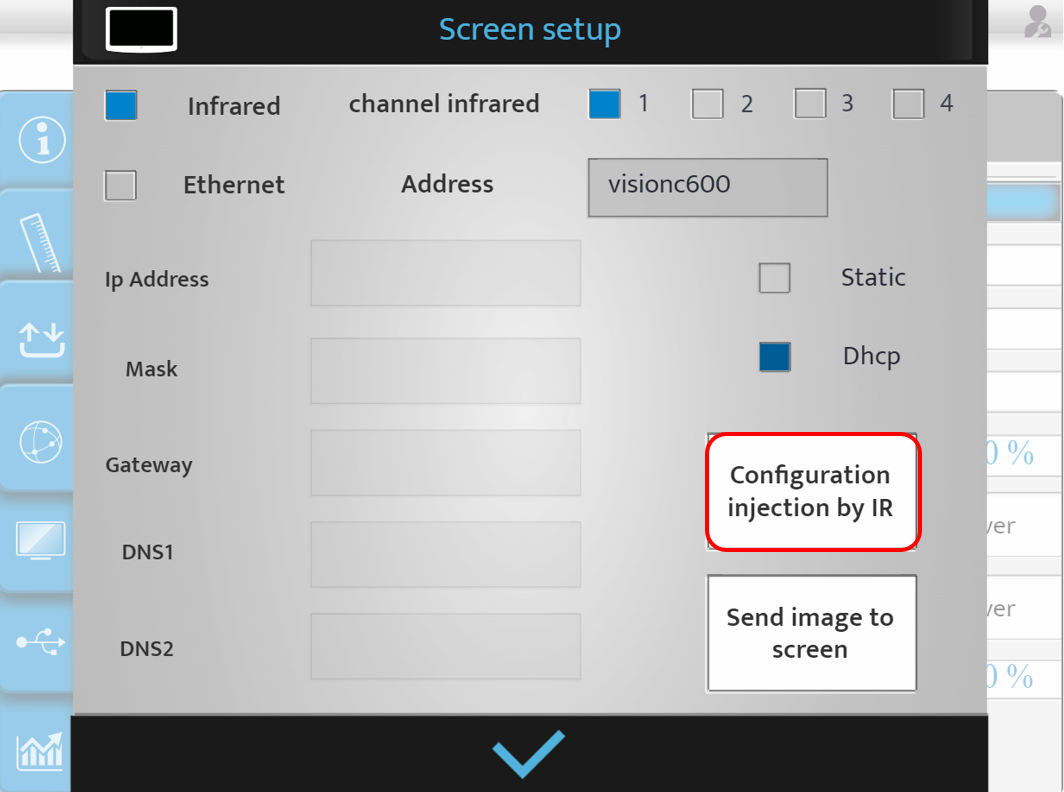

6. Press Configuration Injection by IR button.


6.1 The screen will receive the parameters via IR.


Testing Controlling Command

7. Press Send image to screen to test.

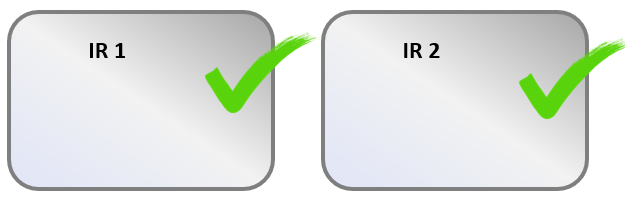

7.1 The screen will show changes (IR1 & IR2).




Calibrating System

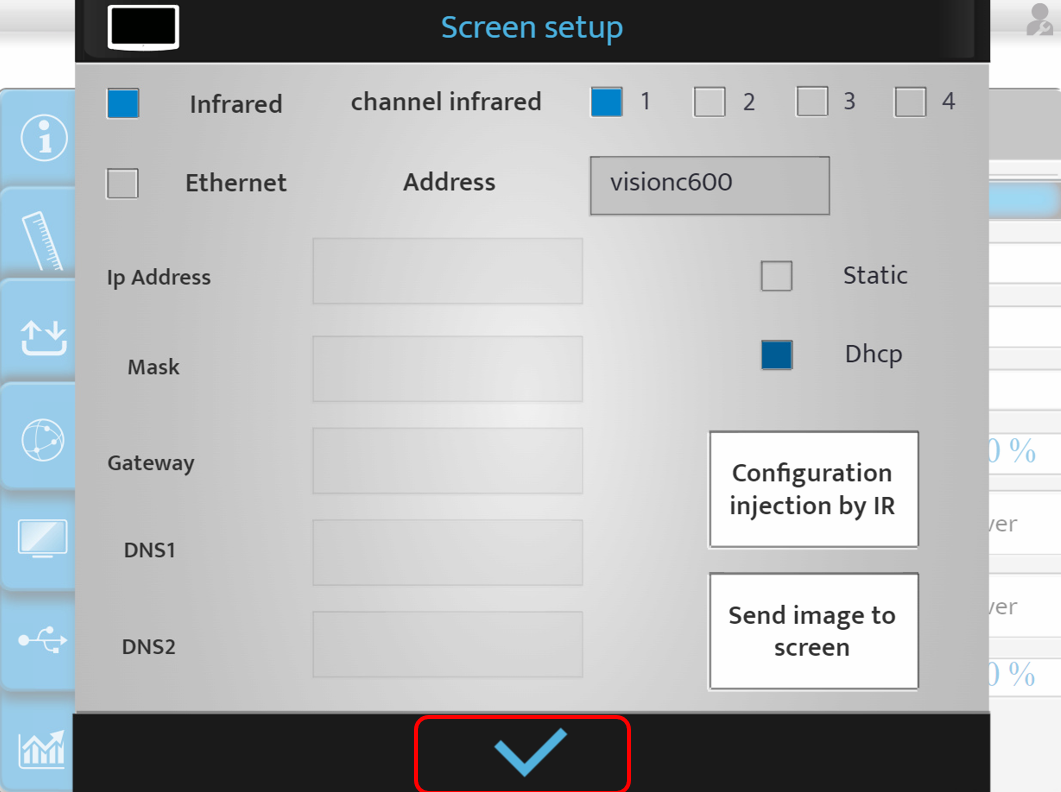

1. Press Check to close the Screen Setup page.


2. Press check to save all the parameters.


3. Chart Export screen is displayed.
Verify the parameters and press check.


In case the Chart Export Message does not show you can follow these steps.


3.1  After the process is done the following message is displayed.
Click on check.


4. Remove the USB THUMB DRIVE from the power supply


Flashing the screen


1. Switch off the VisionC600 screen.

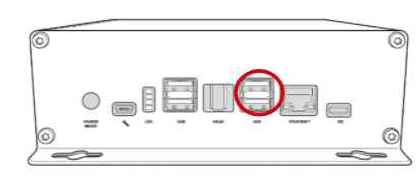

2. Insert the USB key into the USB port – Underneath VisionC600



3. Switch on the screen
4. Specific update screen shows. (few seconds)

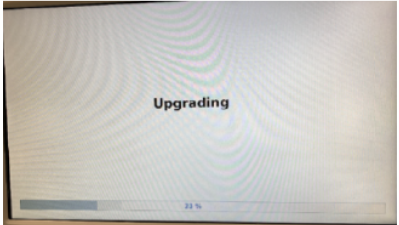

5. Message at the end of the upgrade is displayed.
– remove the usb key    => The chart screen restart automatically

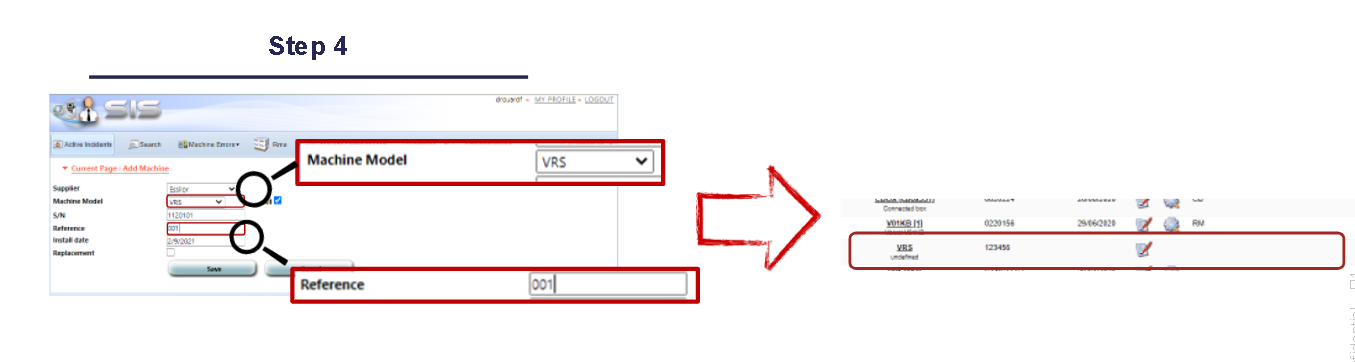

Registration in SIS / VC 600 registration (IR Connection)
