VisionS 700 - Unpacking & Repacking procedure

VisionS 700 - Unpacking & Repacking procedure

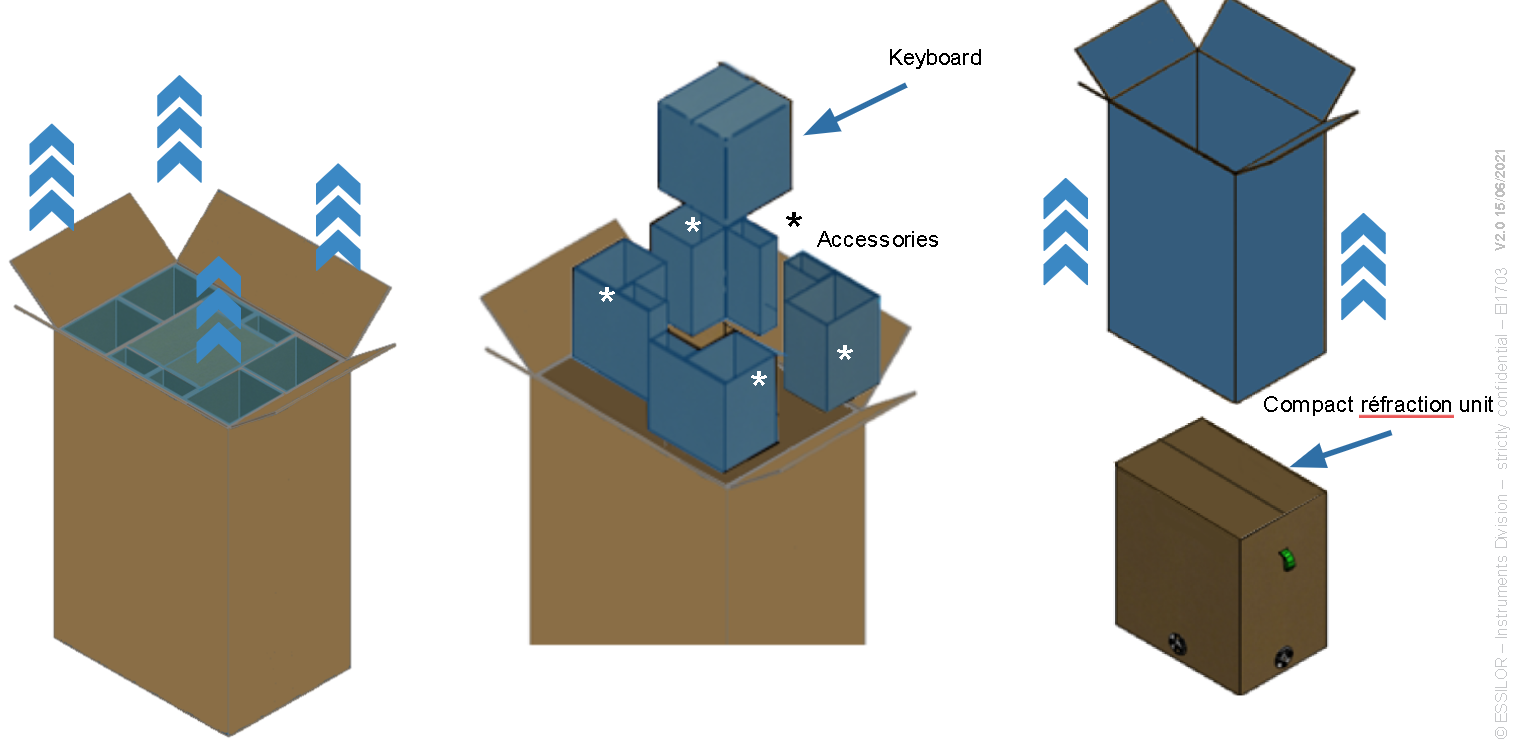

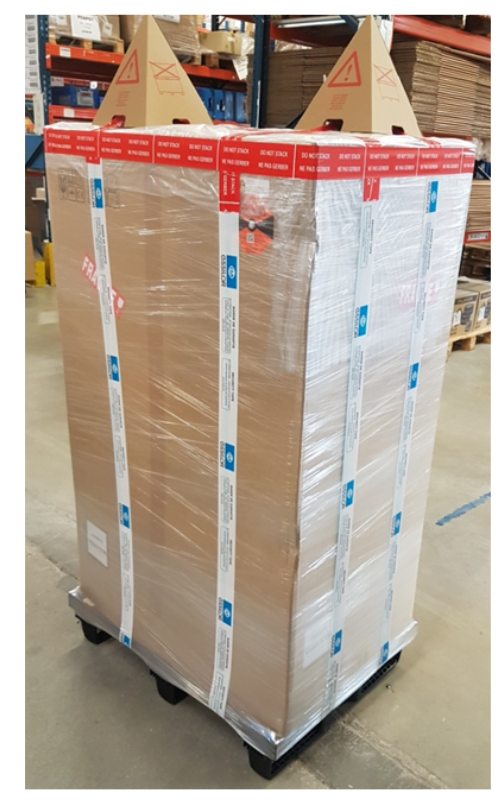

1 big box = 2 boxes inside


  1. Compact refraction unit
  2. Keyboard
  3. CBOX kit
  4. BoxS47 (Switch)
  5. Box of accessories
  6. Printer and paper Rolls (Option)

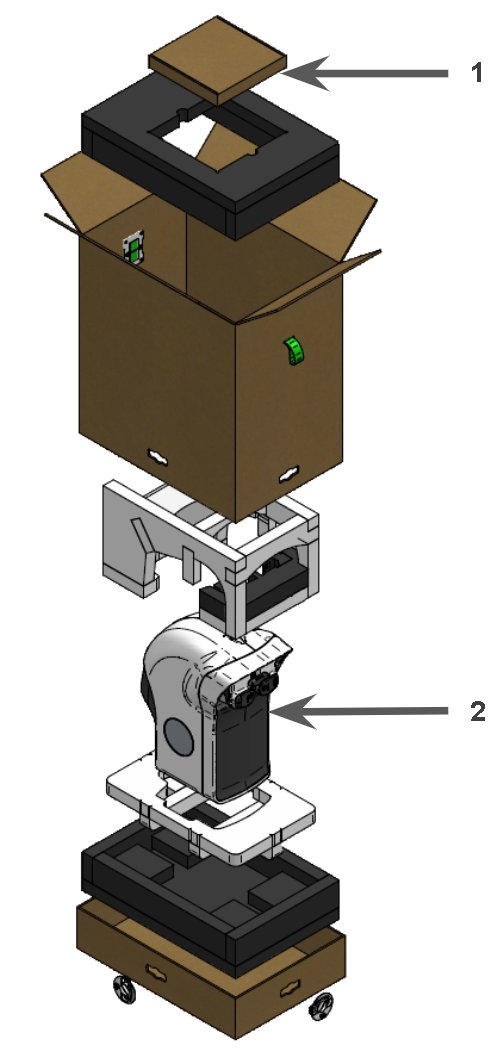

Contents

  1. Compact refraction unit (2)
  2. Accessories Box (1)

Step 1

  1. Open the top of the carton box.
  2. Remove the accessories box.
  3. Remove the top black foam.


Step 2

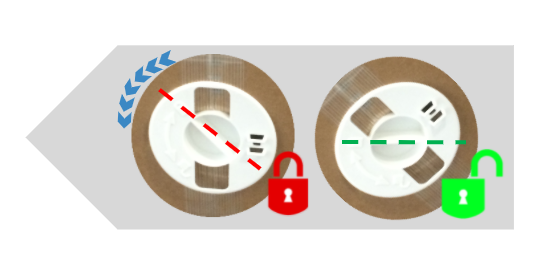

  1. Move the four locks with a quarter turn.
  2. Remove the locks.
  3. Lift up the carton box to remove it.

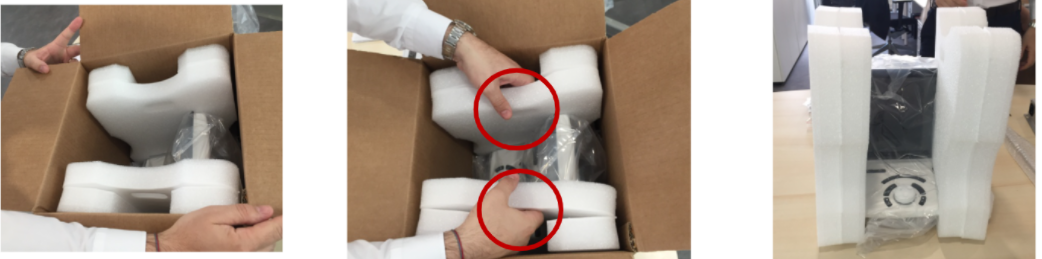

Step 3

  1. Open the plastic bag.
  2. Remove the white foam, by tilting its forward.
  3. Remove the head protection black foam (full straight).

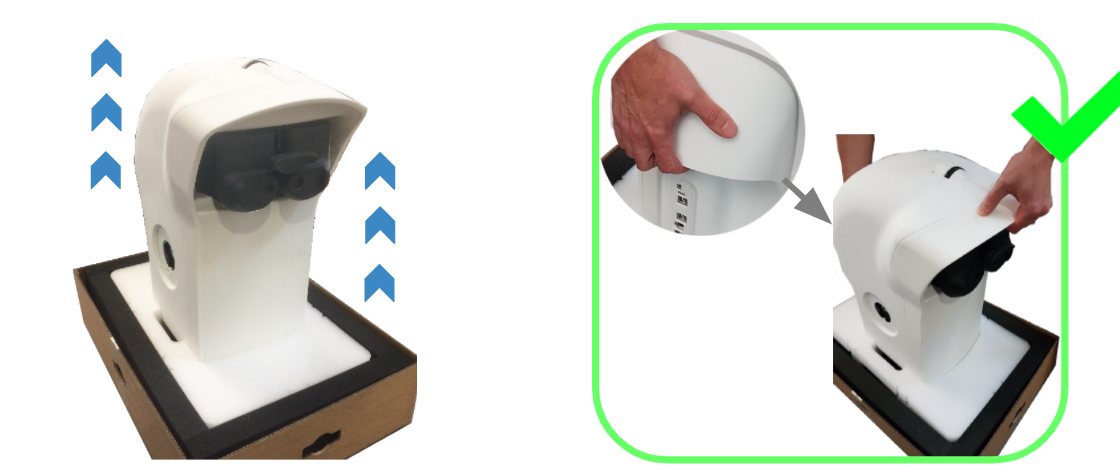

Don’t use the phoropter head to lift the product.

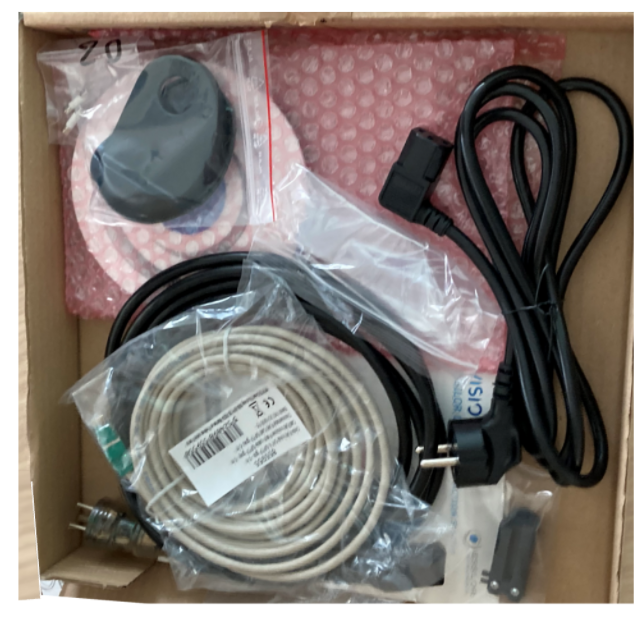

  • Power cords (US/Eur)

  • Movable logo (1)

  • Unlocking key

  • Keyboard cable locking key

  • Keyboard cable locker

  • Quick start

  • Dust cover

  • Movable face shields (1 right/1left)

  • Forehead rest (1)

  • RJ45 cable

  • Fuse

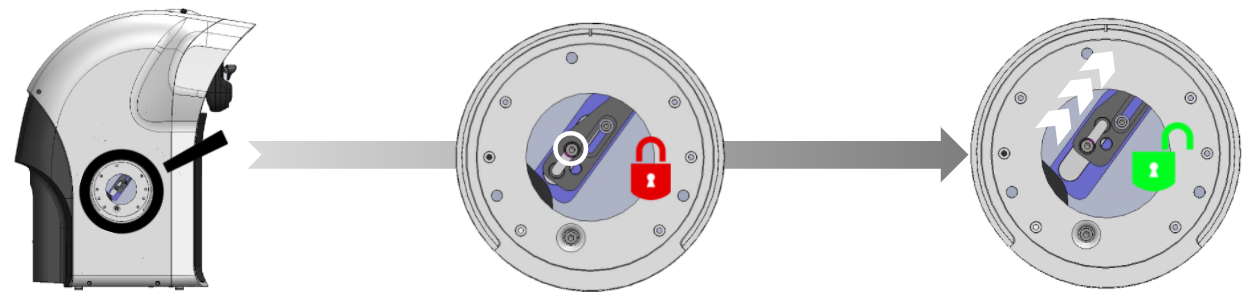

> Unlock the compact refraction unit with the key


> Set up forehead rest cover

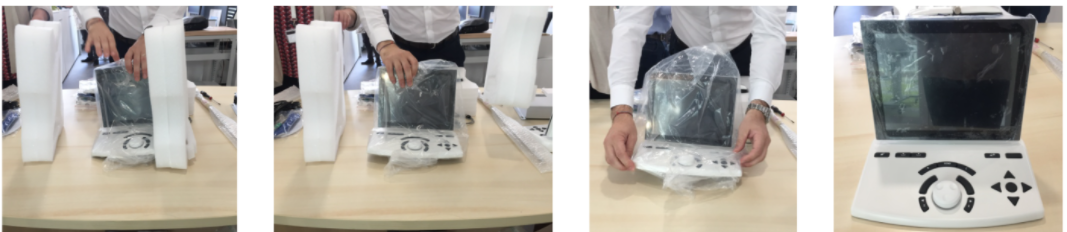

KEYBOARD -  Unpacking & Repacking procedure

Step 1 Open the box and remove the keyboard from the foams






Step 2 Remove the foam on each side and the plastic bag
