General Recommendations for Exam Room Installations

In order to guarantee a successful installation, we recommend you considering 3 main elements on every single installation.

1. Cables Management

2. Positioning the equipment

3. To use the Right Tools


Please review each recommended element with your direct support professional.

For more information please contact us

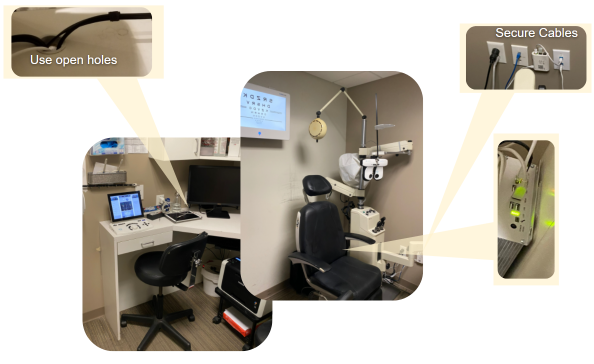

Cables Management

Positioning the equipment

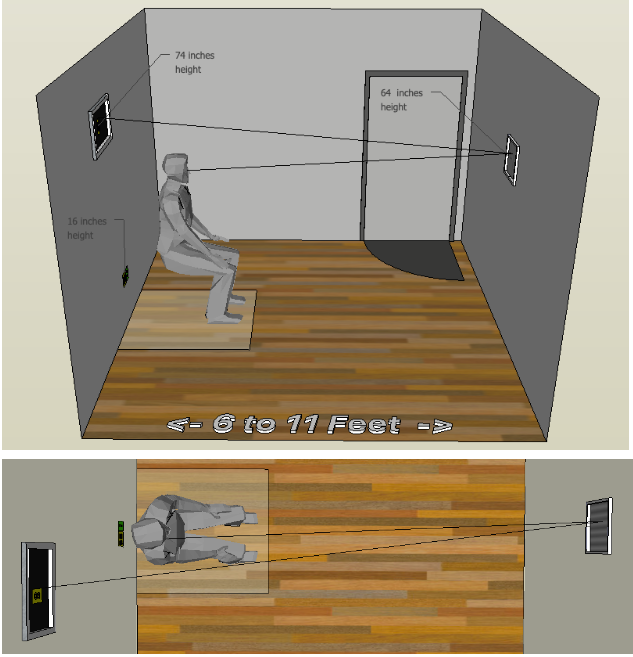

Guideline | 6 to 11 Feet Exam Room

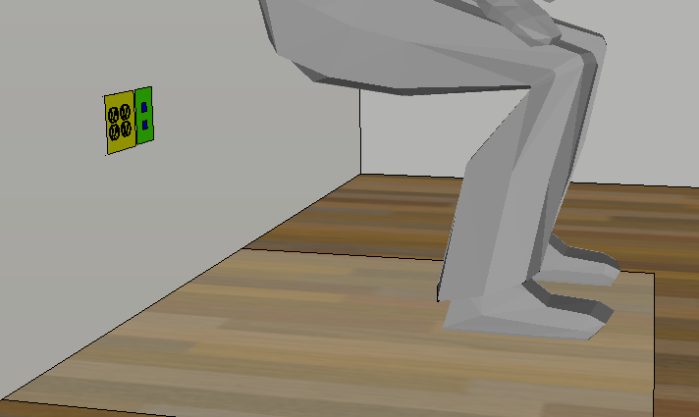

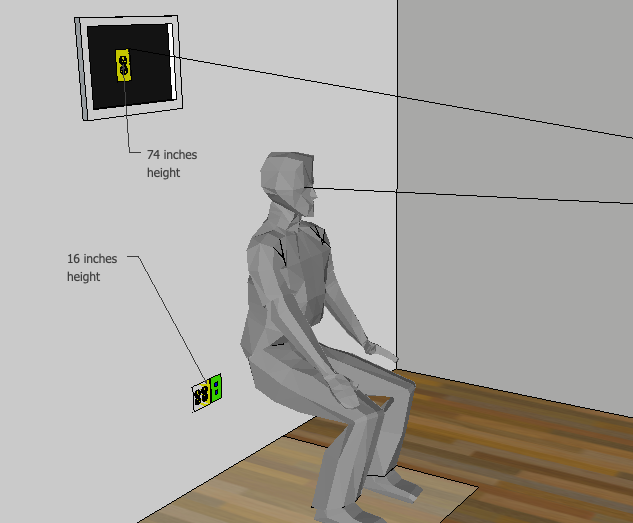

(MIN. QTY 1) power outlets at 16 inches height *** behind the chair *** MANDATORY
(MIN. QTY 1) power outlets at 74 inches height *** behind the chair *** MANDATORY
(QTY 1) Mirror *** front the chair *** MANDATORY

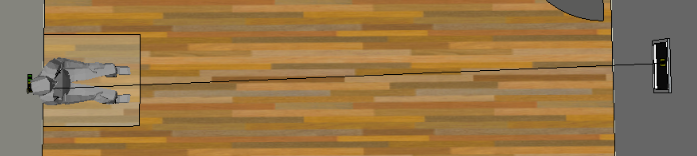

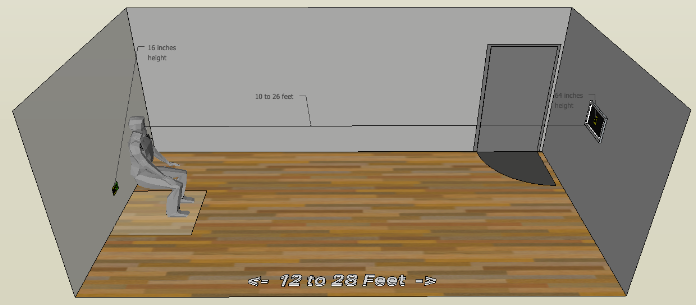

Guideline | 12 to 28 Feet Exam Room

(MIN. QTY 1) power outlets at 60 inches height *** Front of the chair *** MANDATORY
(MIN. QTY 1) power outlets at 16 inches height *** behind the chair *** MANDATORY
(MIN. QTY 1) network ethernet ports at 16 inches height *** behind the chair *** MANDATORY

Use the right tools
