Bevel Position Adjustment - Delta and Jess

Applies to Delta and Jess edgers

This adjustment affects the position of all types of bevel

(a) Access the screen via the K13 bar code

The screen appears - Fig. A -

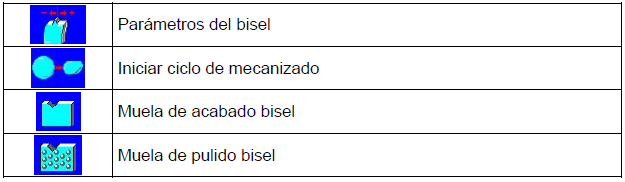

b) Select Bevel Parameters by pressing key 4

c) Confirm by pressing key 5

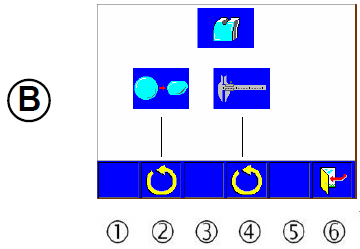

The screen appears - Fig. B -

d) Select Bevel position by pressing key 4

The screen appears - Fig. C -

g) Select the corresponding teeth by pressing key 3

(h) Show the desired correction for each wheel and confirm with the keyboard

i) Save by pressing key 5

The screen appears - Fig. A -

j) Show the desired correction for each tooth and confirm with the keyboard

k) Save by pressing key 6

The screen appears - Fig. A -

l) Exit by pressing key 6
